Antelope Zen Quadro Synergy Core

Start 360°

14 x 10 dual USB-C audio interface with Synergy Core real-time effects

AD/DA conversion: 24 bit / 192 kHz
Dynamic range: Up to 130 dB
4 discrete, ultra-linear 6-transistor preamps with 75 dB gain
Input sensitivity: -128 dBu (A-weighted)
Dual USB-C: Supports simultaneous playback and recording with two systems (2 x computer or 1 x computer and 1 x mobile device)
Synergy Core real-time FX platform with FPGA and DSP chips (for up to 48 mono effects at once)
64-bit Acoustically Focused Clocking technology (AFC) and jitter management
DC-coupled analogue inputs and outputs
Loopback function
48 V phantom power
Bus-powered
Supports standalone operation
Dimensions (W x H x D): 210 x 58 x 136 mm
Weight: Approx. 0.9 kg
Includes software bundle with 37 Synergy Core real-time effects, USB-C cable, and USB-C to USB-A adapter

Connections

2 x mic/line/Hi-Z combo inputs (XLR/jack)
2 x mic/line combo inputs (XLR/jack)
2 x monitor outputs (6.3 mm jack)
2 x line outputs (6.3 mm jack)
2 x stereo headphone outputs (6.3 mm jack)
1 x optical ADAT input with up to 8 channels @ 44.1 / 48 kHz (supports SMUX)
1 x S/PDIF 2-channel input and 1 x S/PDIF 2-channel output (cinch)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since May 2024

Item number 591213

Sales Unit 1 piece(s)

Recording / Playback Channels 14x10

Number of Mic Inputs 4

Number of Line Inputs 4

Instrument Inputs 2

Number of Line Outs 4

Headphone Outs 2

Phantom power Yes

Number of S/PDIF Connectors 2

Number of ADAT Connectors 1

Numer of AES/EBU Connectors 0

Number of MADI Connectors 0

Ethernet 0

Other Connectors USB-C

MIDI interface No

Word Clock No

Max. sample rate (kHz) 192 kHz

Max. resolution in bit 24 bit

USB Bus-Powered Yes

Incl. power supply No

USB Version 2.0

Width in mm 210 mm

Depth in mm 136 mm

Height in mm 58 mm

Connection Format USB port Type C

Included in delivery USB-C Cable and USB-C to- A Adapter

Zero latency monitoring 1

Show variations of this product

Antelope Zen Quadro Synergy Core

Antelope Zen Quadro Synergy Core 14 x 10 dual USB-C audio interface with Synergy Core real-time effects * AD/DA conversi...

7.299 kr

to the product

Antelope Orion Studio Synergy Core

Antelope Orion Studio Synergy Core 32 Channel Thunderbolt 3 and USB 2.0 Audio Interface * Includes 51 studio effects * 2...

28.390 kr

to the product

Antelope Discrete 8 Pro Synergy Core

Antelope Discrete 8 Pro Synergy Core Thunderbolt/USB Audio Interface * 26x32 Thunderbolt 3 & USB 2.0 audio interface wit...

17.444 kr

to the product

Antelope Discrete 4 Pro Synergy Core

Antelope Discrete 4 Pro Synergy Core Thunderbolt/USB Audio Interface * 14x20 Thunderbolt 3 & USB 2.0 audio interface wit...

11.790 kr

to the product

7.299 kr

Free shipping incl. VAT

Sales Rank

in USB Audio Interfaces

Bundles & offers

Create your own bundle

starting from 9.099 kr

Up to 5% discount

Audio interface with effects processor

The Antelope Zen Quadro Synergy Core is a high-quality audio interface with 4 analogue and 10 digital outputs. Featuring an integrated, digital Synergy Core signal processor for real-time implementation of effects, which effectively renders the processing power of a DAW superfluous, the interface can also be connected to two computers or smartphones to provide a flexible workflow, while the AD/DA conversion boasting a maximum 24bit and 192kHz recording quality makes the Antelope Zen Quadro Synergy Core a suitable jitter-free audio interface for professional productions – from music to podcasts. A major standout feature of the Antelope Zen Quadro Synergy Core, however, is the internal signal processor, which enables seamless live streaming. Packed full of features, there can be no doubt that the powerful Antelope Zen Quadro Synergy Core is the perfect allrounder for a multitude of productions.

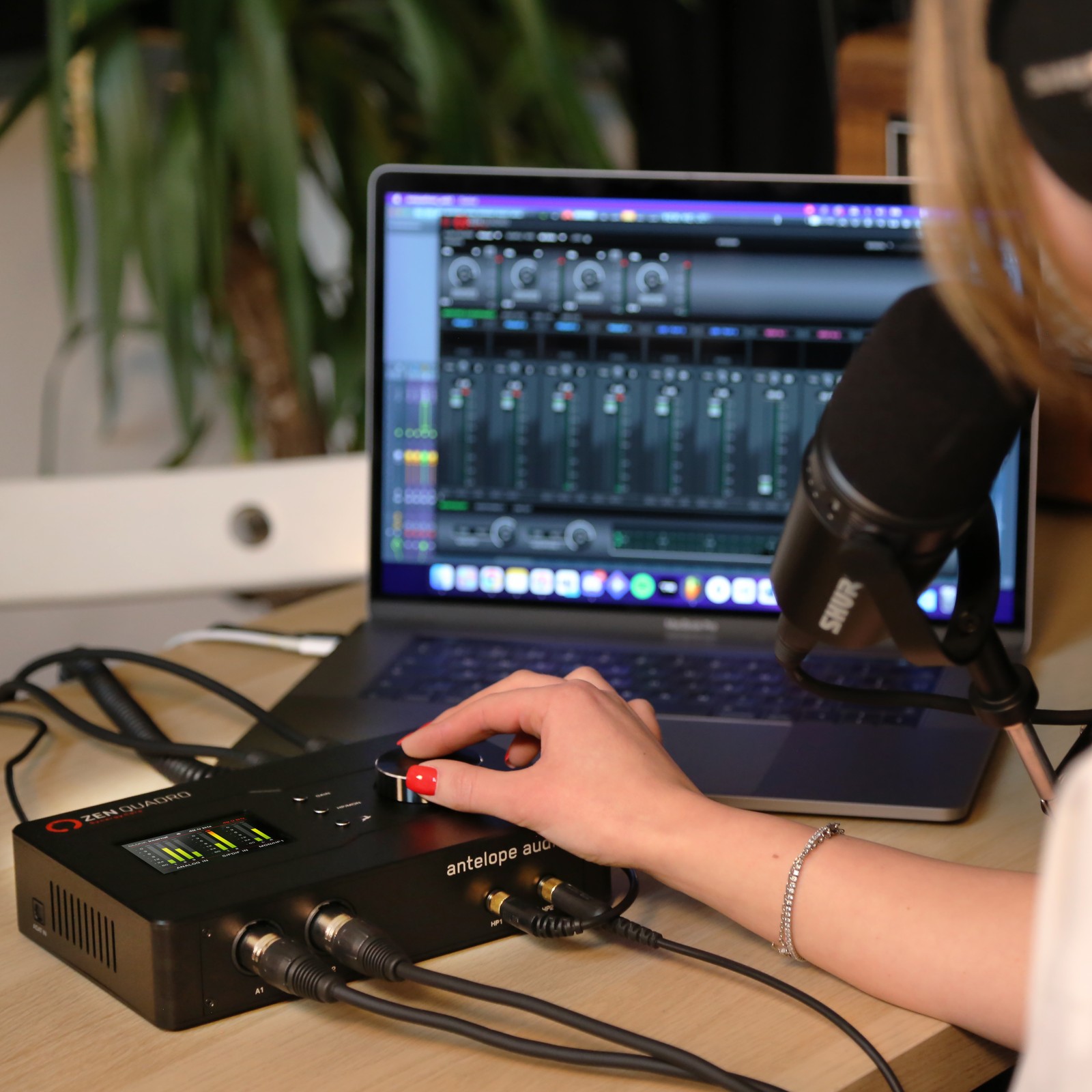

Woman produces a podcast using the Antelope Zen Quadro Synergy Core

The perfect interface for musicians and content creators

The converters in the Antelope Zen Quadro Synergy Core, which are feature in the manufacturer’s Galaxy series, boast a dynamic range of up to 130dB. Clocking is provided courtesy of the proprietary 64-bit AFC technology, which provides an excellent level of detail and an exceptional stereo image in audio playback. Inspired by the British and American consoles of the eighties and nineties, the internal preamps operate on the basis of six discrete transistors, offering excellent noise suppression and precise sound capture. With up to 75dB of gain, even the quietest dynamic and ribbon mics can be used with maximum success. XLR combo jacks are available as analogue input sockets for flexible connectivity. The front of the interface is fitted with special Hi-Z inputs for guitars and basses.

A high-performance interface for many applications

The Antelope Zen Quadro Synergy Core was created for all musicians and streamers who are looking to achieve a seamless signal flow with real-time effects. The dual USB ports allow a computer and smartphone to be connected simultaneously, enabling the free routing of signals and creation of mixes between the two devices. A loopback function is also available for streaming. Two practical headphone outputs located at the front of the device provide the perfect setup for two-person podcast productions. Additional digital signals can be fed in via the S/PDIF connections and the inputs and outputs are DC-coupled to enable control voltage output for hardware control. With linear preamps, integrated real-time effects, and standalone operation, the Antelope Zen Quadro Synergy Core is the gateway to achieving the perfect audio production.

About Antelope Audio

Antelope Audio is a manufacturer of professional audio equipment that was founded by developer Igor Levin, who invented the famous AardSync clock generator with which his then-company Aardvark made waves in the world of audio engineering at the end of the 20th century. In 2005, Igor Levin went – as he himself put it – back to his roots and continued to develop the AardSync concept. The result of this development work was the “Oven Clock”, a word clock generator that is kept at a constant temperature of 64.5 °C to provide increased stability and improve jitter performance. The newly founded Antelope Audio caused a similar splash in 2005 with its OCX Clock Generator. Today, Antelope Audio, which is based in Sofia, Bulgaria, is one of the world’s leading manufacturers of high-quality audio interfaces and AD/DA converters and includes big names such as Rihanna, Jay-Z, and the Wu-Tang Clan among its users.

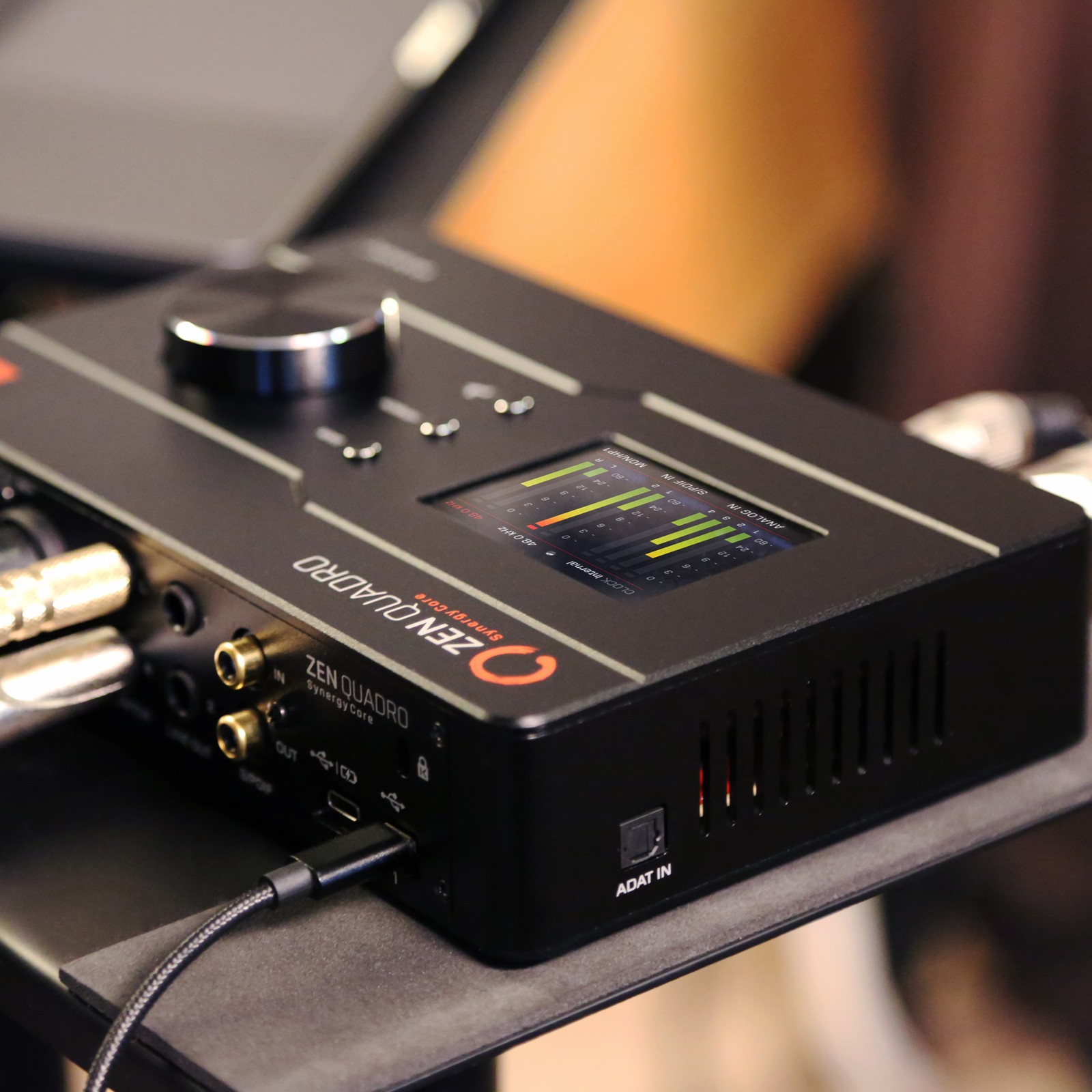

Antelope Zen Quadro Synergy Core with EQ display and connected cables

Legendary effects with great analogue sound quality

The effects incorporated into the Synergy Core DSP can be accessed by connecting the interface to a computer. Synergy Core uses FPGA chips to model analogue hardware, ensuring exceptional productions that are virtually indistinguishable in sound from the legendary devices. A total of 37 effects are available, including compressors, equalisers, modulation effects, and guitar amps and cabs, with even more effects available to purchase via the Antelope Audio Shop. What is more, all effects can also be applied during streaming, not just after recording, with near-zero latency and zero processing strain on the connected computer! Up to 48 mono effect instances can be distributed simultaneously across six tracks, enabling a complex signal chain for demanding productions.

This is what customers who viewed this product bought

Focusrite Scarlett 2i2 3rd Gen

Focusrite Scarlett Solo 3rd Gen

14 Customer ratings

5 12 Customers 4 0 Customers 3 0 Customers 2 1 Customer 1 1 Customer

4.5 / 5

handling

features

sound

quality

Review guidelines

13 Reviews

The best audio interface for this price range

Tsetso Toshev 08.10.2024

I recently added the Antelope Zen Quadro Synergy Core to my home studio and the difference is huge. The preamps and built-in effects provide a professional audio experience. Most of all I love that I have 2 headphone outputs and I can control everything independently, it makes my work easier than ever. Totally worth upgrading your setup with such an audio interface.

quality

features

handling

sound

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Fantastic quality for amazing price

Ricky01 01.08.2024

The Quadro offers so much for such a small package. The quality of the preamps and built-in effects offer professional standard audio. Despite some technical faults with the control panel software, which Antelope Audio are aware of and is in the process of fixing

quality

features

handling

sound

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

No hay nada igual por este precio

MSEstudios 23.08.2024

Es la segunda que compro. Los convertidores son maravillosos, Puedo usarla con el móvil o el iPad, Synergy Core en tiempo real funciona a las mil maravillas. Y es estupendo para hacer podcast o YouTube live. Pero lo mejor es la calidad con la que grabo en mi dar en un dispositivo de este precio y este tamaño. Es cómoda, es ligera y es estable como una roca.

quality

features

handling

sound

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

A NEW STANDARD QUALITY FOR THE PORTABLE INTERFACES

Mark84 02.10.2024

I was looking for a portable interface for my synth performances, and I was immediately attracted to this new unit.

As soon as I tried it, I was really impressed both by the sound and the versatility, because I can also use it stand-alone as a mixer for my live performances: during my last show I connected my modular synth and Digitakt to the Zen Quadro. I simply routed them (directly from the screen) to the output and to the headphone out, so I could control both the output levels and my in-ear levels. In the meantime, I recorded the performance with my iPad with an outstanding quality and it's all in one small device!

quality

features

handling

sound

Report

Read all reviews
