Black Lion Audio Revolution 6x6

6-Channel USB-C Audio Interface

  • With word clock and USB OTG function
  • Stand-Alone DAC mode
  • Precise Macro-MMC clock
  • Two stereo headphone outputs with separate control
  • Direct monitoring with mix control and mono switch
  • AD/DA conversion: 24bit / 192kHz
  • LED level indicators
  • Switchable 48V phantom power supply
  • Volume control
  • OTG cable or OTG adapter not included
  • Dimensions (H x W x D): 10.16 x 25.4 x 22.86 cm
  • Weight: 1.75 kg
  • Software package included (download): Presonus Studio One Artist, iZotope Elements Suite, BrainWorx BX Digital, Lindell 6X500

Connections:

  • 2 Combo input mic/line: XLR/jack
  • 1x Word clock input/output (BNC socket)
  • 1 S/PDIF in/out
  • 2 USB-OTG
  • 2 S/PDIF
  • 2 Line output: 6.3mm TRS jack, balanced
  • 2 Stereo headphone output: 6.3 mm jack
  • USB-C connection
  • USB powered
Available since December 2023
Item number 581285
Sales Unit 1 piece(s)
Recording / Playback Channels 2x2
Number of Mic Inputs 2
Number of Line Inputs 2
Instrument Inputs 2
Number of Line Outs 2
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 2
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors USB-C
MIDI interface No
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 254 mm
Depth in mm 230 mm
Height in mm 102 mm
Connection Format USB port Type C
Included in delivery Incl. Software Bundle (Download): Presonus Studio One Artist, iZotope Elements Suite, BrainWorx BX Digital, Lindell 6X500
7.799 kr
Free shipping incl. VAT
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

A truly multi-functional audio tool

The Revolution 6x6 is the US pro-audio specialist Black Lion's newest addition to its stable – another quite exceptional USB-C audio interface. Instead of just adding a few analogue I/Os to its highly acclaimed first product, the 2x2, the manufacturer has given the 6x6 an interesting and practical selection of interfaces that make the device suitable for any number of potential applications. In addition to a pair of mic/line inputs with very high-quality preamps and phantom power, there are two monitor outputs as well as both S/PDIF and OTG I/Os – for a total of six ins and six outs, plus two (!) separately controllable headphone jacks. This setup allows the 6x6 to be operated as a standalone DAC, a headphone amplifier, or a master clock (with Black Lion's MMC clock). Both the audio quality and the workmanship are first class, and the whole package is neatly rounded off with a comprehensive and high-quality software suite (available free to registered users).

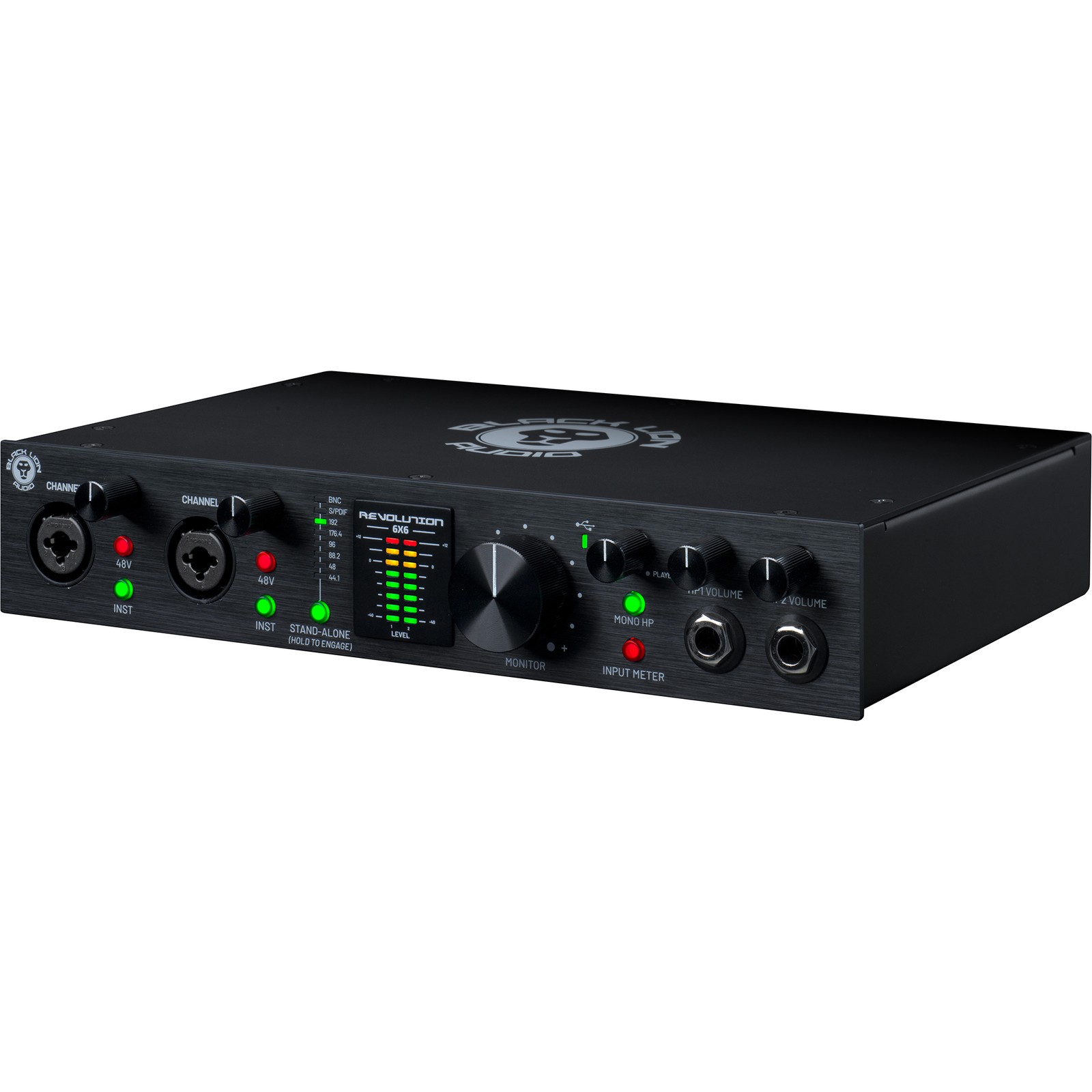

Black Lion Audio Revolution 6x6

As versatile as it is unique

Black Lion Audio's Revolution 6x6 is a high-quality USB AD/DA converter with a uniquely versatile set of features. On the input side, the 6x6 processes a pair of (analogue) microphone, line, or Hi-Z signals as well as a further pair of digital signals via S/PDIF and OTG. Analogue signals are output via the stereo out (balanced) and two headphone jacks. There are also word clock connections and Black Lion's proprietary (and extremely low-jitter) MMC clock. Conversion takes place at up to 24bit/192kHz. The device not only functions as a first-class converter for the user'S DAW, it can also be used as a standalone DAC and/or headphone amp. The 6x6 is very convenient to operate thanks to its high-quality controls and buttons, and configuration is also carried out using button combinations, alongside a software-driven setup wizard. The only thing some users might think is missing is a MIDI interface.

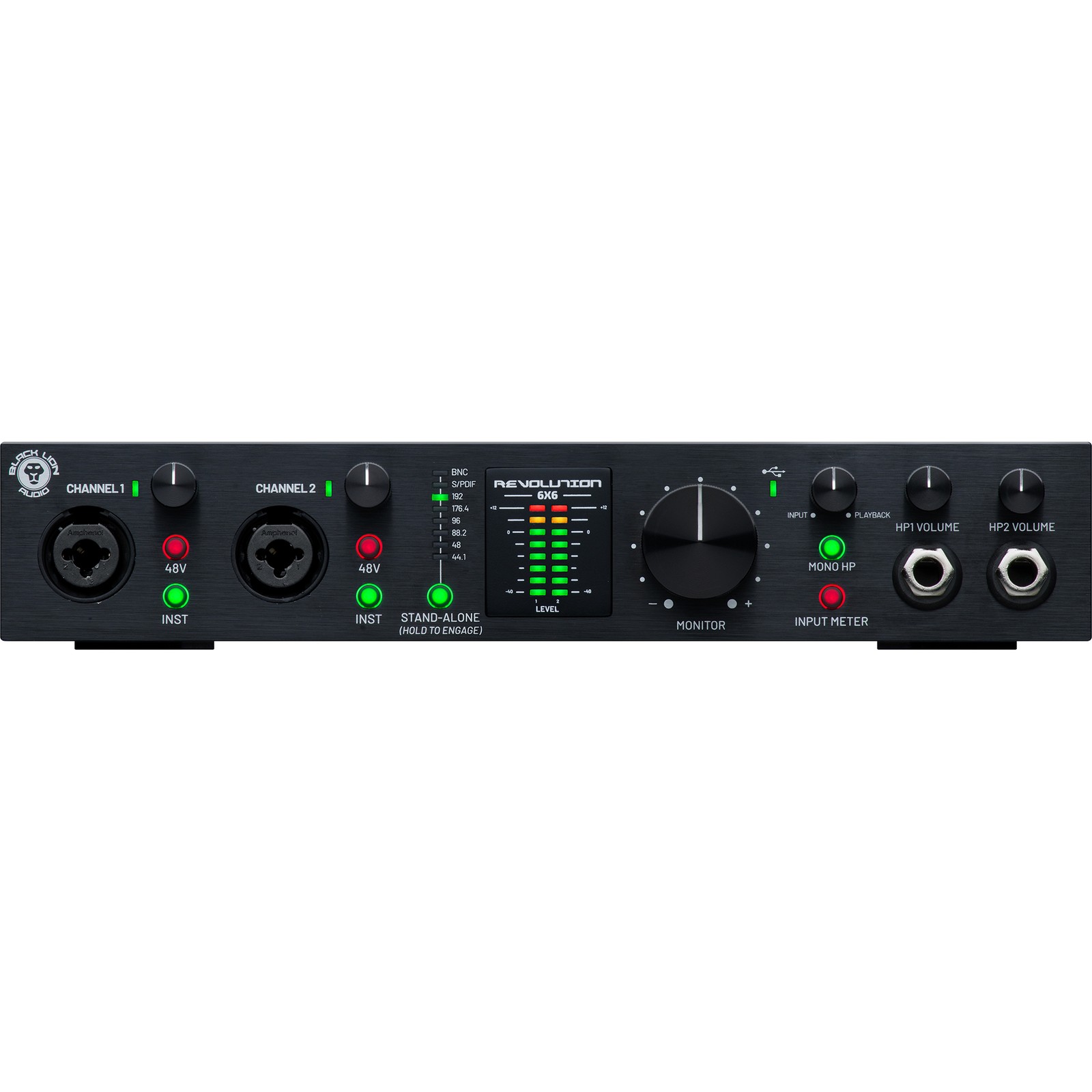

Black Lion Audio Revolution 6x6, front

Top device for pros and audiophiles

Its exceptional features make the Black Lion Revolution 6x6 suitable for a wide range of applications: The device can be used as a high-end headphone amplifier or as a DAC for a home entertainment system, but the first-class preamps also enable very high-quality vocal and instrumental recordings, and its OTG port makes it suitable for content production in countless situations. The free-to-download software package allows the device to be used easily and immediately. All of this makes the Black Lion Audio Revolution 6x6 an extremely attractive tool for all creators of music, sound, and content who demand excellence when it comes to both audio quality and usability.

Black Lion Audio Revolution 6x6, Logo

About Black Lion Audio

Black Lion Audio is a US company from Chicago that has become known for the modification of industry-renowned microphone preamplifiers, digital-to-analogue converters, and signal processors. However, the manufacturer's portfolio also includes innovations such as the PG-1 Type F Power Conditioner, which was developed completely in-house. The Black Lion Audio team has always taken great care to only produce devices with a high standard of sound and workmanship, which has earned the manufacturer an international reputation within the audio industry. With the 2021 release of the Revolution 2x2, Black Lion Audio also expanded its existing product range with a compact audio interface, which brought to bear all of the manufacturer’s accumulated experience and expertise.

At home, on the go, and in the studio

The Black Lion Audio Revolution 6x6 is not simply a multi-channel audio interface for recording and playback. Instead, thanks to its variety of interfaces and connection formats, the 6x6 is an audio tool that is as specialised as it is versatile. The device's outstanding audio quality and dual headphone jacks make it an ideal I/O for your DAW; for users who do need more analogue I/Os, on the other hand, the Revolution EXP from the same company is the perfect partner. However, the 6x6 will also make an impressive high-end DAC – for example as part of a home entertainment system. Last but not least, the OTG port enables direct streaming to and from mobile devices, which gives exacting content producers an almost endless array of potential applications to work with. And thanks to its USB and bus power ports, mobile operation is a breeze.

Black Lion Audio Revolution 6x6 – connections, rear
