EVOLVE 70 Sub

EVOLVE 70 Sub

Active 15" Subwoofer

For use with EV EVOLVE 70 (cardioid configuration possible)
Frequency range: 35 Hz - 160 Hz
Power 1000 W peak
48 V phantom power
Dimensions (W x H x D): 450 x 623 x 607 mm
Weight: 26.8 kg
Colour: Black

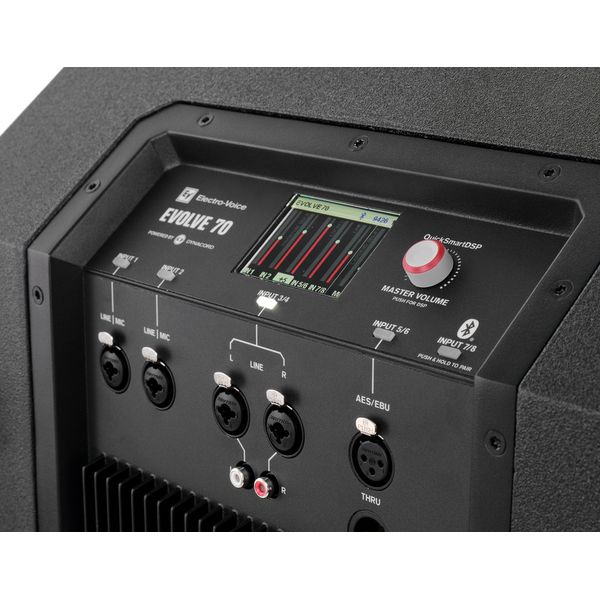

Inputs:

Two Mic/line inputs: XLR/6.3 mm jack combo socket
One stereo XLR/RCA
One XLR AES/EBU
One AES/EBU Thru

Outputs:

One XLR Sub Out
One XLR Mix Out

Suitable accessories not included:

Protective cover: Art. 616158
Dolly: Art. 616164

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Item number 616284
Sales Unit 1 piece(s)
Power (Manufacturers Specs) 1000 W
Number of Bass Woofers 1
Bass Woofer in Inch 15"
Colour Black
Width 450 mm
Height 623 mm
Depth 607 mm
Weight 24 kg
Wheels No
Stand Flange Special Type
Multi Channel Power Amp No
Remote Control BT
Housing Material Wood
Construction Bassreflex
Dsp Yes
Input Connector XLR
Output Connector XLR
X-Over Connector No
High Cut Adjustable
Frequency Range (-10dB) from 45 Hz
Frequency Range (-10dB) to 160 Hz
Frequency Range (-3dB) from 40 Hz
Frequency Range (-3dB) to 160 Hz
