XVive PX-A Portable 3-Channel Mixer

Start 360°

Portable 3-Channel Mixer

Headphone amplifier for in-ear monitoring
Complete control over the in-ear mix thanks to 3-channel design
Perfect for singers, keyboardists, drummers, guitarists, bassists and other musicians
Compact and lightweight design
PoE (power over ethernet) battery switch selects either Cat 5 9V PoE power supply or 2x AAA battery operation
Up to 5 hours battery life with 2 AAA batteries (not included) for battery operation
The DIP switches inside the PX can be used to determine how each channel is spanned: left, right or left + right
Controls for volume / on-off, input, input 2, input 3, switch for PoE / battery, DIP switch for L / R / L + R per channel, status LED
Convenient, externally accessible battery compartment with clip fastener
Sturdy belt clip for attachment to belt or waistband
Shock-resistant metal housing
3.5 mm jack stereo headphone output
Ethernet input
Max. output: 2 x 150 mW at 16 Ohm
Power supply via optional 9V DC power supply 2.1 mm x 5.5 mm barrel connector, centre negative or 2 x AAA batteries (not included)
Weight: 150 g

Note Register your purchase at www.w-distribution.de/en/Warranty for an extended warranty of 4 years.

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since June 2024

Item number 593237

Sales Unit 1 piece(s)

Integrated Mixer Yes

755 kr

Including VAT; Excluding kr200 shipping

Sales Rank

in Wired In-Ear Components

Flexible personal monitoring system

The XVive PX Portable 3-Channel Mixer System is a portable and wired monitoring system which combines a high-quality headphone amplifier and a pocket-sized three-channel mixer, giving musicians and performers the ability to create their personal monitor mixes "on the fly" during live events, recording sessions, and even practice. The three audio channels are transmitted via a single Cat 5 Ethernet cable and can be routed left, right or centre in the mixer. Instrumentalists and vocalists can thus freely choose between a stereo and a mono signal or three mono signals, and then set the levels. The XVive PX Portable 3-Channel Mixer System can be powered by two AAA batteries, a 9V DC adapter (not provided), and - interestingly - PoE (Power over Ethernet).

Sound and power via CAT5

The included XVive PX-B 3-Channel Snake plugs into the mixing console (or other sound source) via three XLR connectors (6.3mm unbalanced jack adapters are also provided, just in case) and the three signals are carried to a Cat 5 Ethernet socket, along with 9V of PoE (Power over Ethernet), when available. The EC25 Cat 5 cable then delivers the audio and power to the XVive PX-A 3-Channel Mixer, which features individual volume controls for each chosen channel, as well as a master headphone output. The three signals can be panned left, right, or left + right (centre) via DIP switches situated in the battery compartment. The headphone amplifier delivers a maximum output of 150mW x 2 at 16 ohms, providing plenty of power. A sturdy clip allows the PX-A 3-Channel Mixer to be safely secured to a waistband or belt.

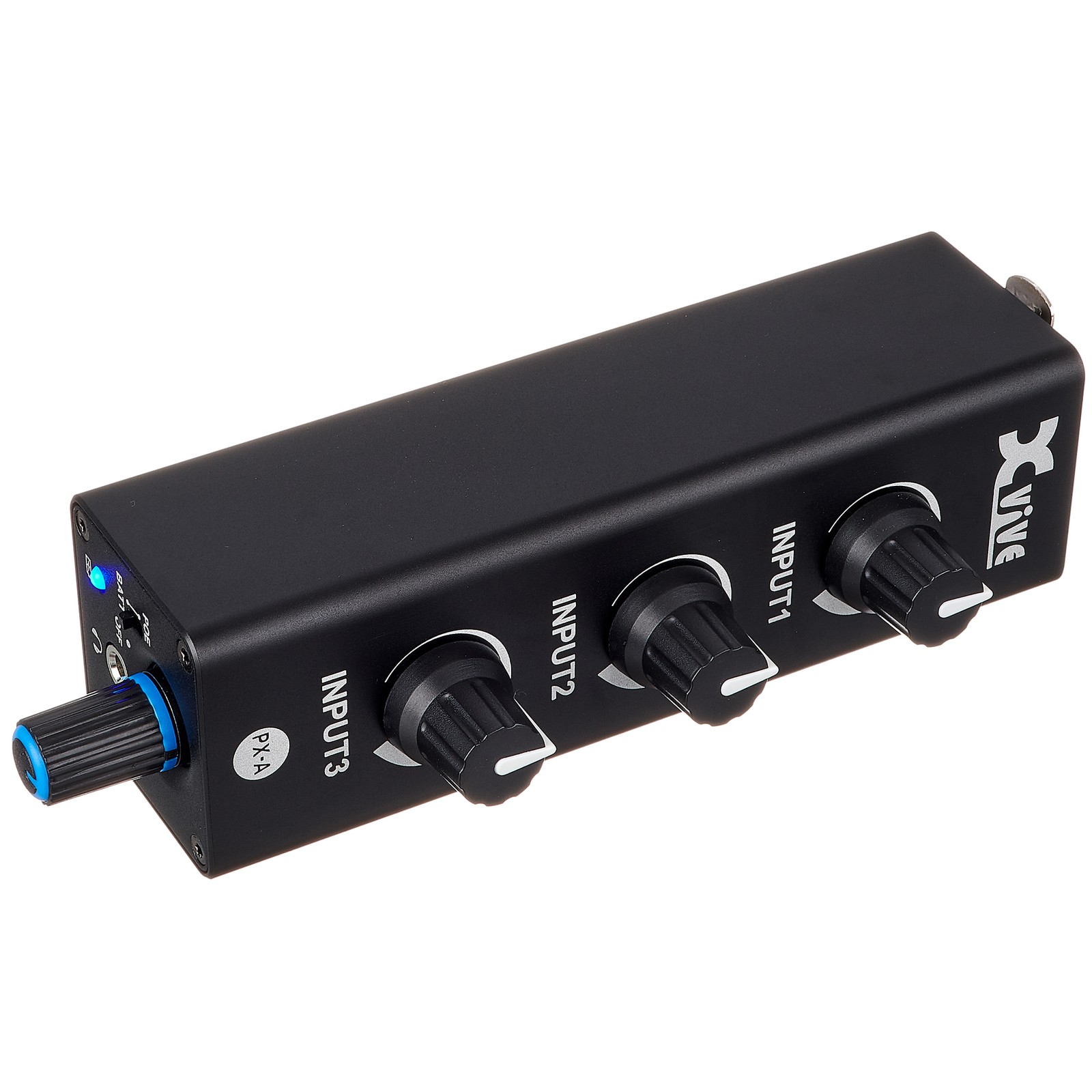

Xvive PX-A Portable 3-Channel Mixer, Detail

A complete personal monitoring solution

The XVive PX Portable 3-Channel Mixer System comprises the PX-A 3-Channel Mixer, the PX-B 3-Channel Snake, an EC25 CAT5 cable, and three XLR-to-jack adapters. Bought as a set, these items are more competitively priced, however, the PX-A and PX-B can also be purchased separately if required. What is more, this already flexible monitoring system can be further expanded upon using the PX-H 5-Channel Hub, which can distribute the signal and PoE to five PX-A 3-Channel Mixers simultaneously, using a single PX-B 3-Channel Snake and EC25 cable - providing a simple solution for musicians and vocalists, during live concerts or recording sessions, where performers can individually tune the monitor mix to their liking.

About Xvive

Xvive Audio officially entered the market in 2012 with its compact U2 wireless guitar system. Since then, the company has also been involved in the development of wireless microphone technology. Its catalogue also includes effects pedals, such as the Signature Series, which were developed in partnership with guitarist Thomas Blug. The products are designed by an American team, based in Pasadena, California, which is composed of musicians and engineers and draws on decades of professional experience. Its lead designer, Howard Davies, was previously employed at Electro Harmonix and Pigtronix, among others. Xvive Audio's goal is to create products that deliver exceptional sound and build quality, while remaining affordable for any musician.

For individual monitor mixes

Singers often need to readjust the balance between their voice and the other musicians in their monitor mix during a performance. A typical setup in this case would be vocals on the first input, guitars and keyboard mix on the second, and finally bass and drums on the third. For drummers, hearing the drums, bass, guitar, and vocals loud and clear is crucial in order to navigate the song structure, subtly interact with other band members and of course remain in lockstep with the bassist at all times. In this case, a typical setup might be bass on the first input, drums on the second input, and finally guitar and vocals on the third input.
