Yamaha DM3

2

16-Channel Mixer

  • For studio, stream and live applications

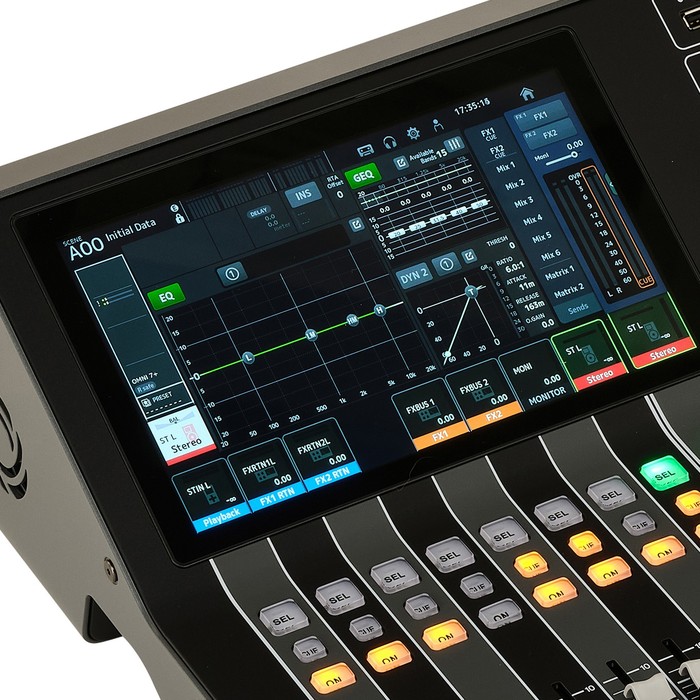

  • 9" Multi touchscreen
  • 9 Motorised faders
  • "Touch and Turn" control
  • 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
  • 16 Mono Inputs + 1 Stereo + 2 FX Return
  • 8 Outputs
  • Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
  • DAW Remote Feature (HUI)
  • OSC support for installations
  • Editor app available for tablet (tablet not included)
  • 16 x 16 DANTE interface with 16 inputs and outputs
  • 6 Freely assignable buttons
  • 2 x 2 Channel recording/playback via USB port
  • 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
  • 8 Groups with DCA roll-out
  • Dimensions (W x H x D): 320 x 140 x 455 mm
  • Weight: 6.5 kg
  • Includes Steinberg Cubase AI and VST Rack Elements

Connections

  • 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
  • 8 Line outputs: XLR
  • 2 x Dante input (RJ45)
  • Stereo headphone output: 6.3 mm jack
  • USB to Host
  • USB to Device
  • Ethernet RJ45
Available since September 2023
Item number 564038
Sales Unit 1 piece(s)
User Interface Physical/remote
Number of faders 9
DSP Input channels 16
Mic Preamp 16
Physical outputs 8
Digital stagebox connection No
Hotspot No
Multitrack Record Yes
integratated Player/Rec via USB/SD stereo
19" Rackmount Optional
Max.number of input channels 16
Microphone Inputs 16
Analog Line Inputs 16
DSP Output Channels 8
Analog Line Outputs 8
Busses 6
Mono-Line Input 16
Stereo-Line Input 0
Motorfader 1
Computer interface USB
Ethernet Yes
Special Features DANTE, 18x18 USB Audio Interface
Soundcard interface USB-B
Recorder Format WAV/MP3
RTA No
FX Processor 2
31 Band EQ 0
Delay Input 1
Delay Output 1
Matrix 2
DCA/VCA Groups 0
Midi Connector No
Sample rate 96 kHz
Separate Personal Monitor system No
Expansion Card slots 0
Digital ADAT No
Digital SPDIF No
Digital AES3/ASESEB No
Digital MADI No
Digital Dante Yes
Case No
Height 140 mm
Width 320 mm
Depth 455 mm
Weight 6,5 kg
Show more
29.990 kr
Free shipping incl. VAT
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

2 Customer ratings

4 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

handling

features

sound

quality

1 Review

google translate de
Unfortunately there was an error. Please try again later.
-
DM3 (Dante; Firmware 3) Pro-[!Auto-]Mixer auf Grundfläche einer Klappbox
--fx-- 03.03.2025
(Vorab: Gerät wurde erst -laaaange Wartezeit- vor wenigen Tagen geliefert.. Viel Zeit war noch nicht um Eindrücke zu sammeln. Diese Ergänze ich ggf. später hier... Daher die "Sterne" auch vorab)

Mein-Primär-Ziel: kompakter (!!) Master-Mixer für kleinere (vor Allem) DJ Events MIT Dante-Funktionalität (Signalverteilung/"Einsammlung") und "richtigen" Fadern (vor allem für MIC Channels, keine "Rack-Only" Variante).

Dieses Ziel ist schon jetzt erreicht! Das Ding ist wirklich (!) kompakt (Grundfläche: fast genau eine Standard Klappbox), und bietet dafür viele Dinge die sonst nur größere "compact" Versionen der Konsolen mit 19-Zoll und um die 15kg bieten - was objektiv freilich immernoch wenig ist. Vor Allem Dante und ausreichend Kanäle (16 Minimum) sucht man eben in (wirklich) mobilen Geräte oft vergebens...

Pro:
Die wenigen Dinge die ich jedoch schon getestet habe (v.a. Signalverteilung via Dante) liefen auf Anhieb und waren keine Hexerei im Setup - die Bedienung wirkt durchdacht, die Verarbeitung des Gerätes ist sehr ordentlich. Wer schon etwas mit Digitalen Konsolen (01Vxx,..., X32) unterwegs war findet sich zurecht.

Auch hat Yamaha in V3 noch einen 8Ch-Automixer nachgerüstet! (hierzu gab es wohl viele Nachfragen, inkl. der von mir ;-) Firmen die noch (wenigstens etwas) auf Ihre Kunden hören... Chapeau!
...

Con:
- externes Netzteil (sicher der Baugröße geschuldet)
- Die Haptik der Tasten ist anfangs etwas gewöhnungsbedürftig / fühlen sich etwas "teigig" an...
...

...an der Stelle "Luxusprobleme"
