Rockboard ISO Power Block V9 IEC

9

Multi Power Supply for Effect Units

  • 9x Galvanically isolated, highly filtered power connections and 1x USB connection
  • Power supply for up to 9 effect pedals without ambient noise
  • Advanced filter technology effectively prevents high-frequency background noise
  • 3x Switchable power connectors 9 V DC, 500 mA / 12 V DC 375 mA / 15 V DC, 300 mA / 18 V DC 250 mA, 2.1 x 5.5 mm barrel connector, polarity (-) inside
  • 3x Power connection 9 V DC 500 mA, 2.1 x 5.5 mm barrel connector, polarity (-) inside
  • 3x Power connection 9 V DC 250 mA, 2.1 x 5.5 mm barrel connector, polarity (-) inside
  • 1x USB-A connection 5 V 2000 mA
  • Individual status LEDs and short-circuit protection for each power connection
  • International input voltage operation possible with supply voltages from 100 to 230 V AC / 47 - 63 Hz
  • Compact, robust aluminium housing
  • High power output for modern DSP effects with high current requirements
  • Dimensions (L x W x H): 195 x 88 x 35 mm
  • Weight: 591 g
  • Incl. 9x RockBoard 60 cm flat power cables (for powering the effect pedals) and 1x IEC mains cable with EU plug
Available since March 2023
Item number 555588
Sales Unit 1 piece(s)
DC/AC current DC
Output current in mA 3750 mA
9 V Yes
12 V Yes
18 V Yes
Secondary voltage No
Multi-output power supply Yes
2.299 kr
Including VAT; Excluding kr200 shipping
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

All the power, none of the fuss!

How many guitarists or bassists get by with just ONE effects pedal, and how many tabletop arrangements work with just ONE device? Most applications start with multiple pedals or small devices, all of which need to be supplied with power - which means that all of the available sockets on the user's power strip are quickly taken. If detrimental influences such as the infamous high-frequency "whistle" are added to the mix, the recording or gig can ultimately be ruined, and it is precisely here that the ISO Power Block IEC comes into play: Equipped to power the entire pedal setup reliably, but also from just ONE mains connection, this solution makes tangles of power adapters and the associated issues a thing of the past. The V9 is the medium-sized model of the range, and further power blocks are available with 6 or 12 connections.

RockBoard ISO Power Block V9 IEC

Nine effects, one USB device

The RockBoard ISO Power Block V9 IEC is a DC multi-power adapter with nine galvanically isolated and filtered power connections for pedals and small devices, and it is also equipped with a 5V USB port for devices with a corresponding power connection. The mains input is compatible with all common mains voltages worldwide. The device has three 9V outputs loadable to 250mA, three 9V outputs loadable to 500mA, and a further three outputs that can be switched from 9 to 18V and also deliver 500mA. The polarity of all connections is "centre negative", and each connection has a dedicated status LED that serves to indicate a short circuit, for example, subsequently resulting in the deactivation of the affected output while the remaining outputs continue to run. High-frequency noise is also eliminated thanks to the use of efficient filtering technology.

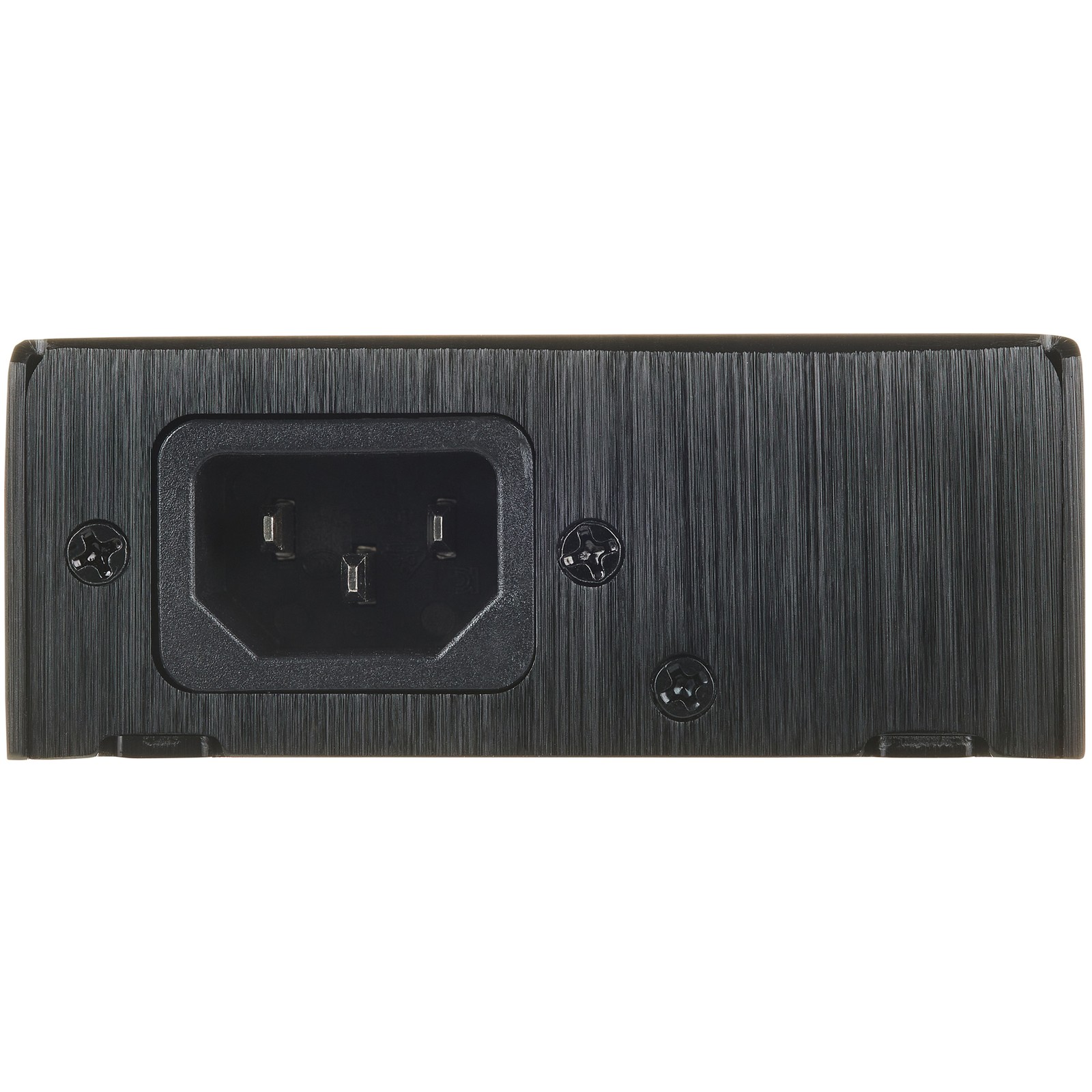

RockBoard ISO Power Block V9 IEC, rear view

Instant stress prevention

Investing in a reliable multi-power supply is a no-brainer for anyone looking for a clean and stable power supply, especially in recording situations – whether at home or in the studio – where problems with power supplies susceptible to interference can quickly spoil the mood. Valuable time is then spent searching high and low for the source of the problem, to the point where sometimes even the will to play is lost. This situation can be encountered in the rehearsal room as well as on the stage, and anyone who performs regularly is only too well aware of the importance of achieving a problem-free and fully-functional setup – a fact that applies in equal measure to the equipment itself, the cabling, and the power supply.

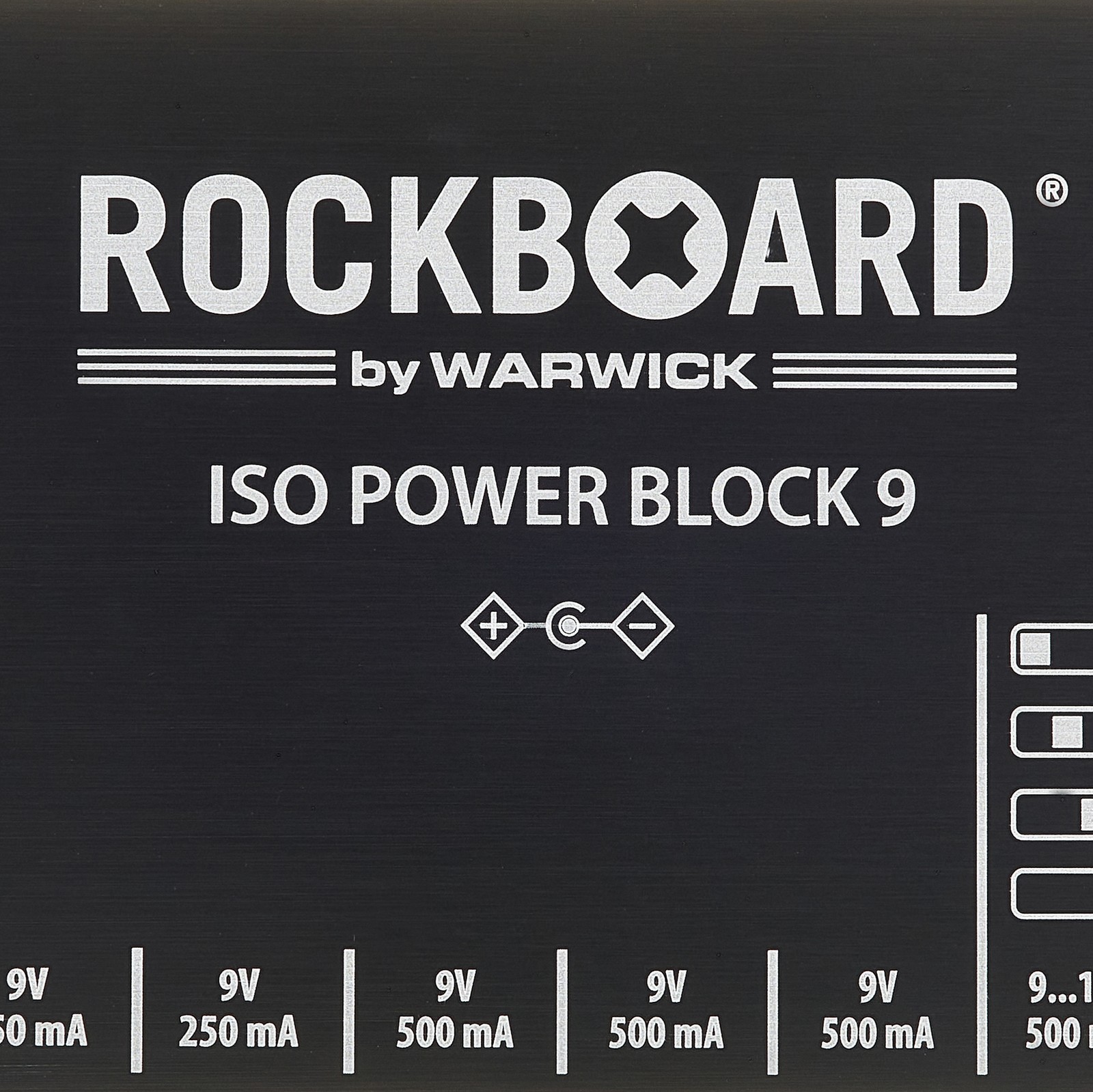

Multi-power supply for effects units

About RockBoard

RockBoard is a brand belonging to Warwick Music Distribution GmbH, which is based in Markneukirchen in Germany's Vogtland region. RockBoard's range focuses on pedalboards, which are available in numerous different designs to suit any application and budget, and are complemented by an extensive range of pedalboard accessories, from slick patchbays for expanding the boards and high-quality patch cables for loss-free connection through to high-performance power adapters and the "QuickMount system" for rapid effect changes. In short, RockBoard offers virtually everything that players need to easily set up their own individual pedalboard.

Better than daisy chains

A collection of individual pedals, a fixed pedalboard, or an arrangement of tabletop devices requires a correspondingly large number of power supplies. The ISO Power Block provides a central and space-saving alternative to an otherwise fully populated power strip and to the use of "daisy chain" systems, which not only require all of the devices involved to operate with the same voltage, but can also be rendered entirely inoperable in the event of a short circuit. With the ISO Power Block, both of these problems are eliminated. The 60cm-long connection cables included in the scope of delivery leave sufficient room for free-standing pedals to be arranged as required, and even setups comprising small drum machines, drone synthesizers, and grooveboxes can be reliably fed from a central power supply via the multi-power adapter. Depending on the scope of the setup, individual longer cables may be required, which can be purchased separately.

9 Customer ratings

4.6 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

quality

6 Reviews

P
Silent 'Rocks' 👍
Puressence 11.02.2024
After frustratingly buying two cheaper so called isolated? power supplies elsewhere, I opted to up my budget for this Warwick supply from Thomann. This was to be a wise decision.

To clarify, I was shocked at the level of noise from the cheaper readily available power bricks. Running only 6 pedals with low power needs/draw. The hum and hiss was too noticeable to say the least. I checked my pedals and cables by running them on batteries and individual ac power supplies, as expected the noise was gone and the power bricks were clearly at fault or not truly isolated as advertised.

This Rockboard has no such issues and is very quiet indeed, it has more power available than the others I tried, so maybe this plays into it? Those more knowledgeable can decide. I am running my board along with good quality cables and a dedicated buffer beginning and end of chain and the results are fab, only an acceptable amount of hiss on the gain pedals, but nothing too distracting or that couldn't be looped out with a gate. Most importantly no hum or annoying artifacts in the sound.

It seems really well constructed all metal and has a small enough form factor. The supplied power cables are branded and of a reassuring sturdier feel than the others I had tested. The USB port is a nice touch for charging phone running a light etc. Basically this supply it does what is describes extremely efficiently.

In conclusion, to be fair I am comparing this to other power bricks at a third of the cost. So I can't offer up how it would compare to others at this price point. That said if other bricks are even better than this then must be truly awesome as this one is as silent and functional as I would ever need.

Highly recommended.
