Rockboard Power Block Multi Power Supply

Start 360°

Multi-Power Supply for Effect Pedals

8 x 9 V DC power connectors, grouped, total load 1,200 mA: 2.1 x 5.5 mm barrel connector (centre negative)
9 V outputs supply max. 150 mA each
2 x 18 V DC power connections, grouped, total load 800 mA: 2.1 x 5.5 mm barrel connector (centre negative)
Max. total power: 2,000 mA
8 Red LEDs indicate short-circuit for each 9V connection separately
Input voltage: 18 V DC
Input voltage: 100 - 240 V AC
Dimensions (L x W x H): 112 x 60 x 22 mm
Weight: 150 g
Includes 1x 18 V DC power supply (2,000 mA) with exchangeable plug adapters (EU, UK, US/CA, AU/NZ) and 10x RockBoard Flat Power Cable 50 cm (for powering the effect pedals)

Note: Register your product at www.w-distribution.de/Warranty and extend the warranty to 4 years.

Note Register your purchase at www.w-distribution.de/en/Warranty for an extended warranty of 4 years.

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since February 2022

Item number 537796

Sales Unit 1 piece(s)

DC/AC current DC

Output current in mA 1200 mA

9 V Yes

12 V No

18 V Yes

Secondary voltage No

Multi-output power supply Yes

885 kr

Including VAT; Excluding kr200 shipping

Sales Rank

in Guitar Effect Power Supplies

Powerful multi-power supply

The RockBoard Power Block Multi Power Supply offers a reliable supply of power for up to ten effects units. The device is equipped with eight grouped 9V connections loadable to a maximum of 1,200mA. Two further ports deliver additional power at 18V and a maximum of 800mA, providing greater flexibility when particularly power-hungry digital effects, for example, are being used. Each output has a red LED for monitoring potential short circuits, so that any problems can be quickly localised. In addition to an 18V power supply with interchangeable plug adapters, the RockBoard Power Block Multi Power Supply is also delivered with a set of high-quality RockBoard flat power cables, produced to a practical length of 50cm, for connecting up the effects.

RockBoard Power Block multi-power supply for effects units

A reliable companion

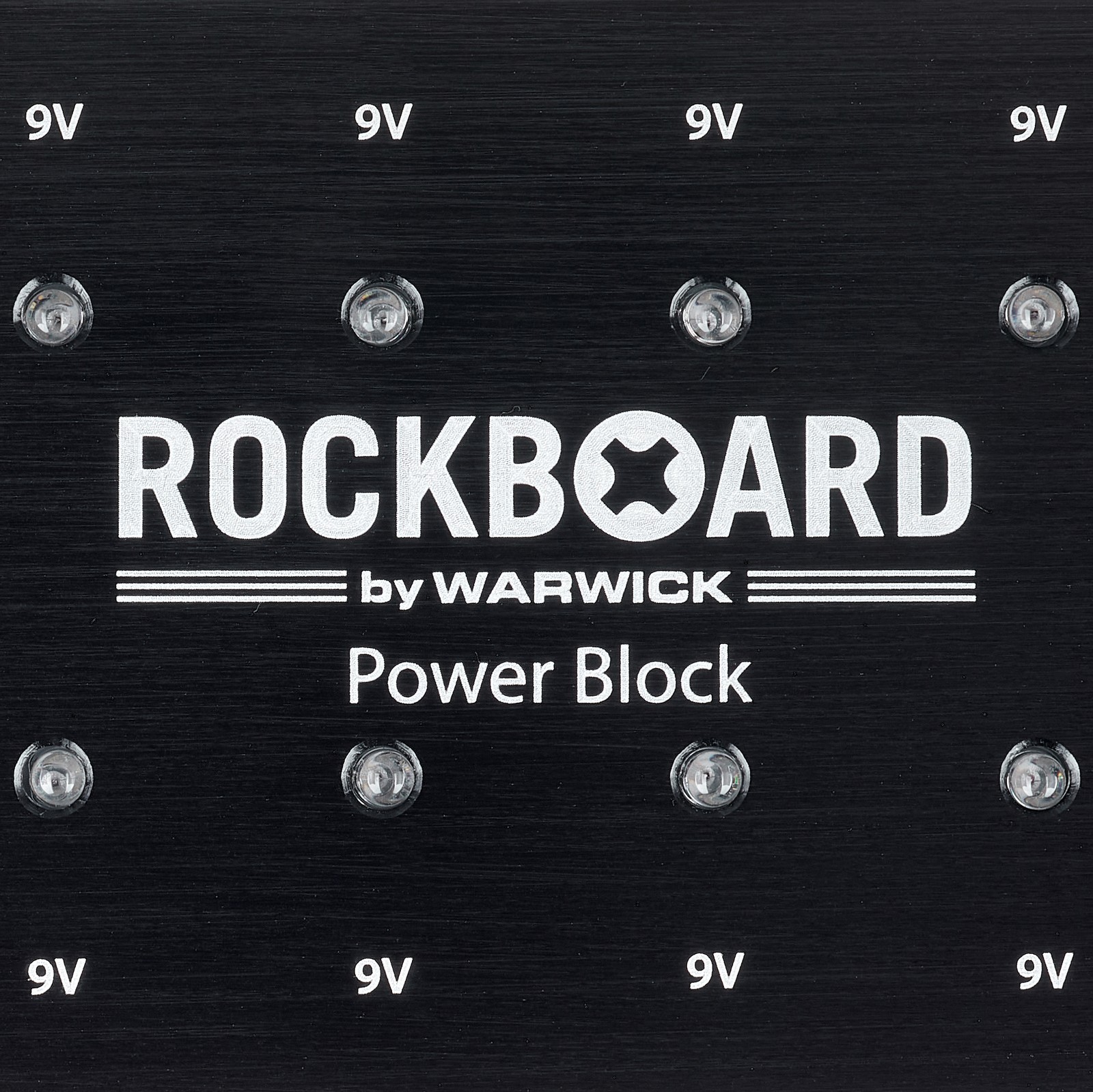

With dimensions of just 112x60x22mm and a weight of only 150 grams, the compact RockBoard Power Block Multi Power Supply can be easily installed under many pedalboards from a variety of manufacturers and particularly those produced by RockBoard, unsurprisingly enough, which of course are also available to purchase in numerous sizes from Thomann. Ongoing monitoring of the operating status and energy supply of each effect connected to one of the 9V sockets is provided courtesy of the eight red LEDs on the upper surface of the robust aluminium housing.

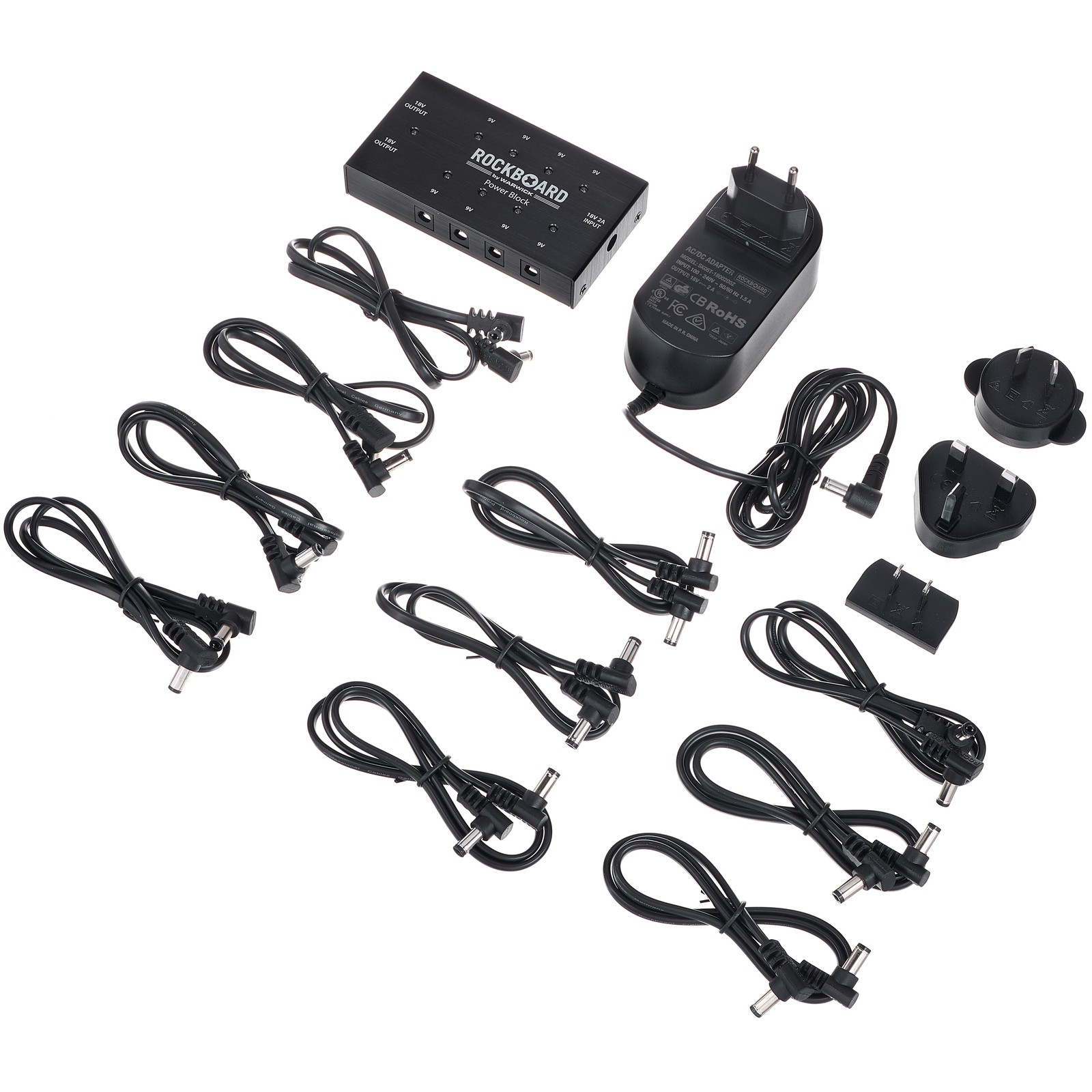

RockBoard Power Block multi-power supply for effects units with accessories

An affordable companion

For guitarists, bassists, keyboard players, and synthesizer groups alike, effects devices are the perfect accompaniment and have their place in every musical setup. The RockBoard Power Block Multi Power Supply is designed to easily deliver 9 and 18 volts of power to ten effects units with the required transparency and above all reliability, at currents of 800 through to 1,200mA. Interference is also a moot point courtesy of the ten RockBoard flat power cables included in the scope of delivery, which ensure a seamless power transfer from the RockBoard Power Block to the connected effects. The result is a versatile power supply which, courtesy of its affordable price tag, is also ideal for beginners looking to set up their first pedalboard.

About RockBoard

RockBoard is a brand belonging to Warwick Music Distribution GmbH, which is based in Markneukirchen in Germany's Vogtland region. RockBoard's range focuses on pedalboards, which are available in numerous different designs to suit any application and budget, and are complemented by an extensive range of pedalboard accessories, from slick patchbays for expanding the boards and high-quality patch cables for loss-free connection through to high-performance power adapters and the "QuickMount system" for rapid effect changes. In short, RockBoard offers virtually everything that players need to easily set up their own individual pedalboard.

For discreet surface and underside mounting

The RockBoard Power Block Multi Power Supply can be discreetly fitted to the underside of all standard pedalboards courtesy of its compact dimensions and low weight, thus providing sufficient space to supply up to ten effects on the top. The ten flat power cables included in the delivery are not only produced to a high quality and a practical length, but also play a substantial role in ensuring an uninterrupted power supply and minimising background noise for the connected effects units, making them more than adequate for most needs.
